Cold air aluminum alloy butterfly valve to control the flow of gas and air control valve using in the furance, kiln and boilers

Place of Origin: Guangdong, China
Brand Name: Sunlor tech
Model Number: AKL15-AKL150
Application: General
Material: aluminium-silicon alloy
Temperature of Media: Low Temperature, Medium Temperature, Normal Temperature
Pressure: Medium Pressure
Power: actuator
Media: natural gas, city coal, liquid gas, air
Port Size: diameter15mm-150mm
Structure: BUTTERFLY
Product name: Butterfly
size: AKL15-AKL150
fuel: natrual gas, city coal, liquid gas, air
Type: clip-on butterfly valve
Connection: equip with actuator
power: electricity
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Place of Origin: Guangdong, China

Brand Name: Sunlor tech

Model Number: AKL15-AKL150

Application: General

Material: aluminium-silicon alloy

Temperature of Media: Low Temperature, Medium Temperature, Normal Temperature

Pressure: Medium Pressure

Power: actuator

Media: natural gas, city coal, liquid gas, air

Port Size: diameter15mm-150mm

Structure: BUTTERFLY

Product name: Butterfly

size: AKL15-AKL150

fuel: natrual gas, city coal, liquid gas, air

Type: clip-on butterfly valve

Connection: equip with actuator

power: electricity

Products work occasion

Usage: Used to control the flow of gas or combustion-supporting air required by the burner

For clamp butterfly valve, the design is exquisite, low torque and maximum inlet pressure 500 MBAR.Low leakage rate and low pressure loss

Operation explaination

Application by natural gas, city coal, LPG, air etc. Temperature: -20℃-100℃

When temperature over 100℃ and less then 150℃,Please specify to us, We shall use Special plastic sealing ring

Valve body is aluminium-silicon alloy, shaft rod is stainless steel, butterfly valve is clamped between two flanges when installed. Flange conforms to DIN2632 and DIN2633. It can link AT31 or AT50. The use scale is from DN15-DN150, maximum caliber to DN150. When DN150 is used in pulse control, it is required to fast open and fast close . It is recommended to cooperate with AT50. AT31 Torque will be smaller. DN100 and its smaller size are recommended to be used with AT31. Torque is sufficient.

Remark

When ordering, please specify whether it is used with actuators or manually.

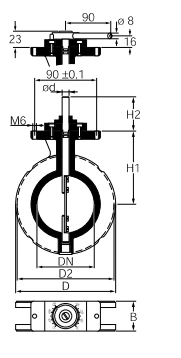

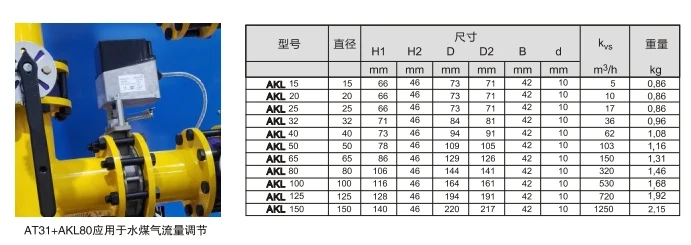

Dimension size
