  • Thread type Gas Linear Valve Series to control the flow of gas and air control valve using in the furance, kiln and boilers

    Application: General
    Port Size: DN25,32 and 40
    Place of Origin: Guangdong, China
    Model Number: AFC25, AFC32 and AFC40
    Power: actuator
    Temperature of Media: Medium Temperature, Normal Temperature
    Brand Name: Sunlor tech astechnic
    Structure: linear
    Media: Gas, Air
    Customized support: OEM, ODM
    Product name: Gas Linear Valve Series
    size: DN25, 32 and 40
    fuel: natrual gas, city coal, liquid gas, air
    Type: Screw connetion type
    Connection: equip with actuator
    power: electricity
    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description
Application: General
Port Size: DN25,32 and 40
Place of Origin: Guangdong, China
Model Number: AFC25, AFC32 and AFC40
Power: actuator
Temperature of Media: Medium Temperature, Normal Temperature
Brand Name: Sunlor tech astechnic
Structure: linear
Media: Gas, Air
Customized support: OEM, ODM
Product name: Gas Linear Valve Series
size: DN25, 32 and 40
fuel: natrual gas, city coal, liquid gas, air
Type: Screw connetion type
Connection: equip with actuator
power: electricity

Products work Principle

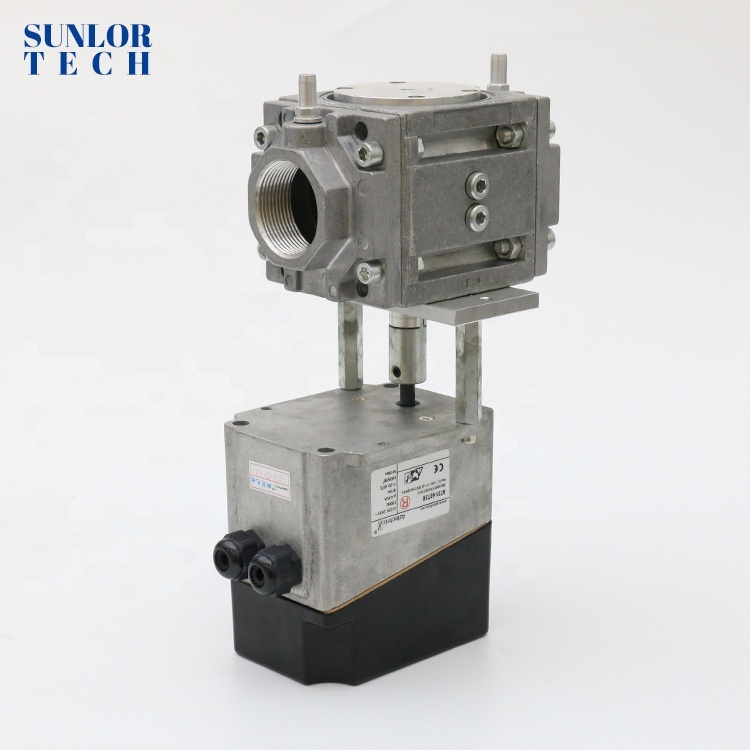

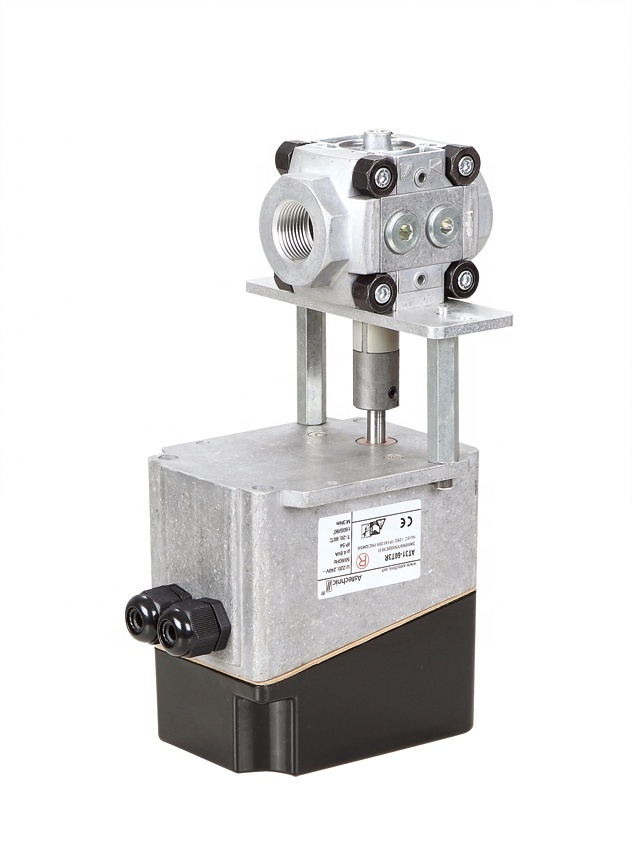

  Linear valve with actuator is used to adjust the flow of gas or air. It is a kind of valve whose flow is linearly proportional to the opening of the valve. When is 0 degree, the flow is 0, when is 90 degree, the flow is the maximum. It can be matched with AT31 actuator. Three-point type or continuous signal control can be selected for easy adjustment. The adjustment range is 25:1. Thus the aim of linear output of burner power is achieved.

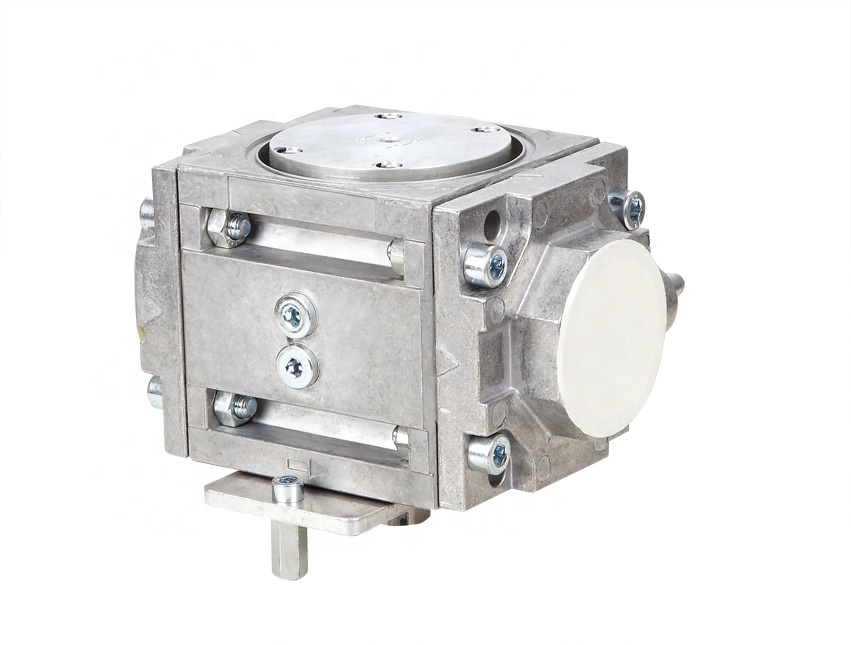

 Linear flow control valve is based on the working principle of rotary spool. There is a specially designed linear flow channel on the flow control cylinder spool, and the corresponding flow can be obtained by adjusting the rotation of the spool.
 Operation explaination
Disassembly threaded connection
suggest to equip with actuator AT31-J model and  AT50 model or AT31-J model with reducer

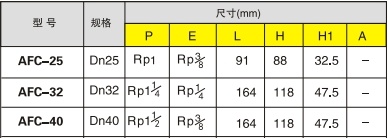

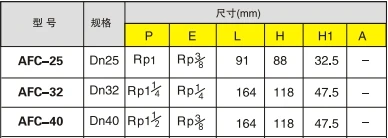

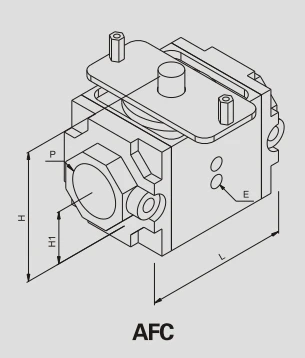

  size
