HOME >> PRODUCTS >> AKR cast iron hot air valve air flow control valve
  • AKR cast iron hot air valve air flow control valve
    AKR cast iron hot air valve air flow control valve
    AKR cast iron hot air valve air flow control valve
    AKR cast iron hot air valve air flow control valve
    AKR cast iron hot air valve air flow control valve
    ❤ Add to collection

  • AKR cast iron hot air valve air flow control valve

    Application: General
    Port Size: DN40-500
    Place of Origin: Guangdong, China
    Model Number: AKR40 to AKR500
    Power: actuator
    Temperature of Media: High Temperature, Low Temperature, Medium Temperature, Normal Temperature
    Type: Butterfly Valves, butterfly
    Brand Name: Sunlor tech
    Structure: BUTTERFLY
    Media: Air
    Customized support: OEM, ODM
    Product name: AKR Hot Air Cast Iron Valve using in the combustion system
    size: AKR40 to AKR500
    fuel: Air
    Connection: equip with actuator
    power: electricity
    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description
Application: General
Port Size: DN40-500
Place of Origin: Guangdong, China
Model Number: AKR40 to AKR500
Power: actuator
Temperature of Media: High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Type: Butterfly Valves, butterfly
Brand Name: Sunlor tech
Structure: BUTTERFLY
Media: Air
Customized support: OEM, ODM
Product name: AKR Hot Air Cast Iron Valve using in the combustion system
size: AKR40 to AKR500
fuel: Air
Connection: equip with actuator
power: electricity



Application
Used to control the flow of hot air or exhaust gas

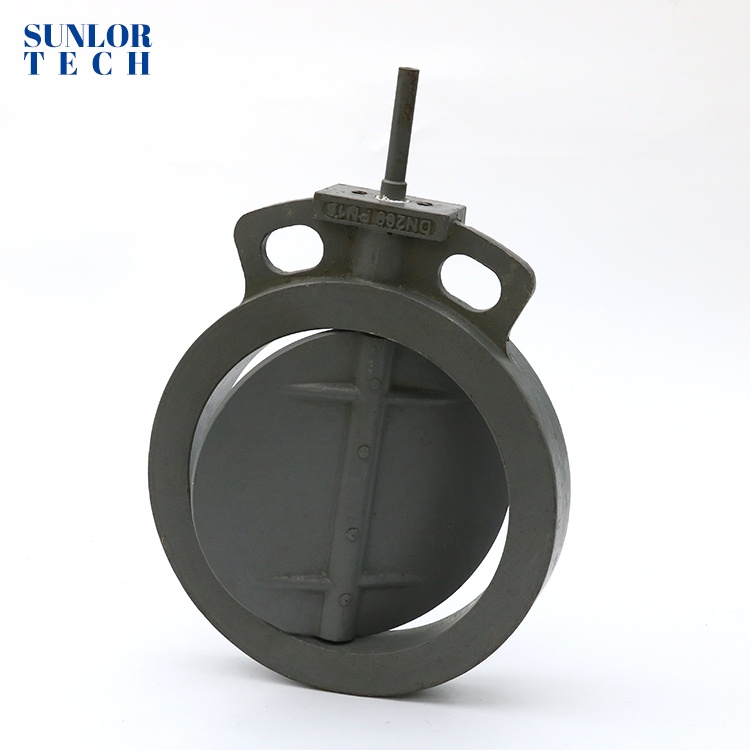

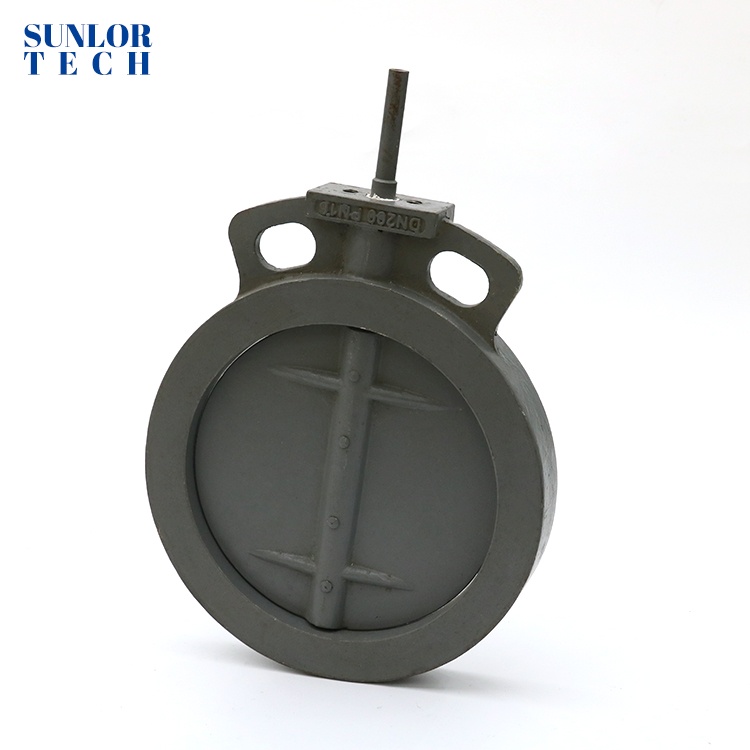

For the clamp butterfly valve, the design is exquisite, the maximum inlet pressure is 500 mbar with low torque, and the leakage rate and pressure loss are low. Medium temperature - 20 + 450 degree. valve body and valve plate are cast iron. The butterfly valve is installed between two flanges, the flange conforms to DIN2632 and DIN2633 and can be used with AT50.
 Operation explaination

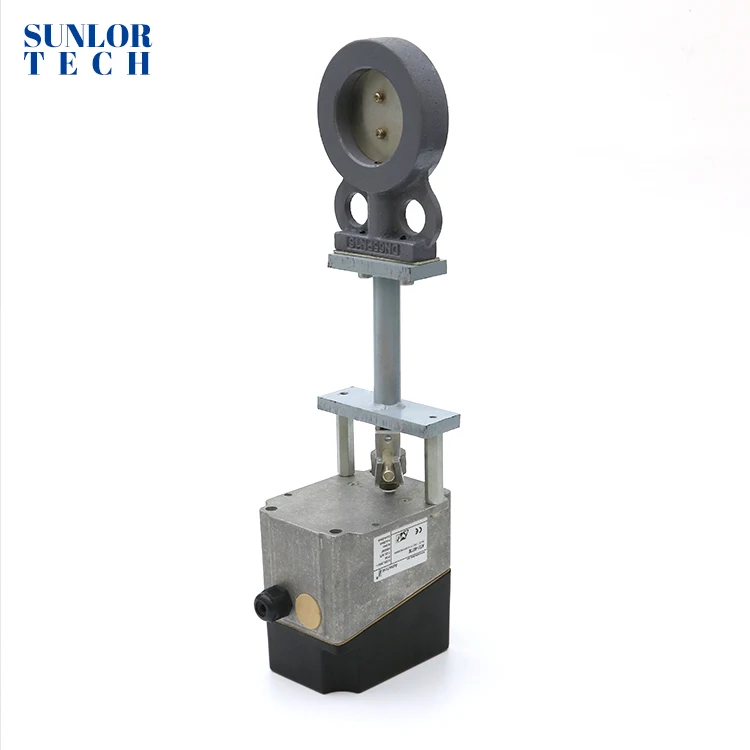

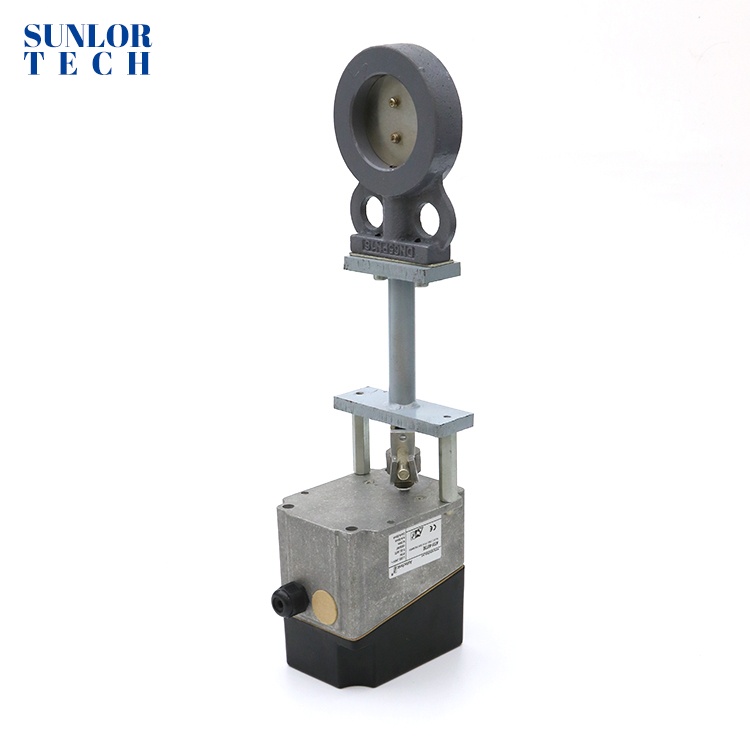

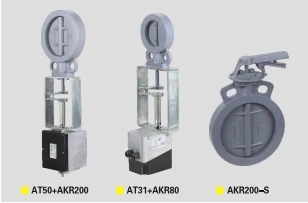

Have manual version and automatic control version.When automatic, equip with Actuator AT50 and AT31. Please specify to us when you place a order
AT31 maximum size is AKR80. AT50 maximum size is AKR250. If over 250, Shall match actuator with higher torque

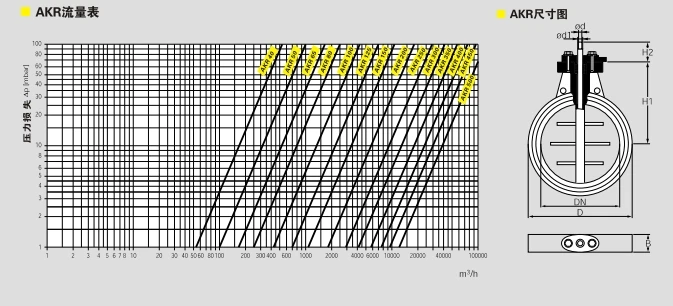

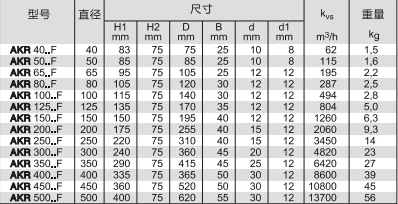

  size
